Structural · S-APKJ6

Beam To Parallel Beam Web Plate Connection

Materials

Steel

Elements

Columns Beams Walls Connections / Plates

Connections

HSS Connection Beam-to-Beam Bolted Connection

About this detail

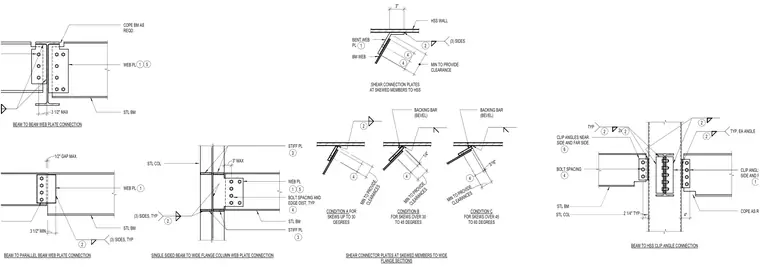

These structural steel connection details illustrate various configurations for framing steel beams into wide flange columns, other parallel beams, hollow structural section walls, and skewed members. The assembly utilizes web plates, clip angles, and stiffener plates bolted to structural steel beams and columns with specified bolt spacings, edge distances, and copes as required. Shear connection plates at skewed members accommodate skews up to sixty degrees using bevel backing bars and welded connections. Clearances and maximum gaps are maintained between members to ensure proper fit-up and load transfer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
