Braced Frame Beam to Column Gusset Plate Connection

Elements

Connections

About this detail

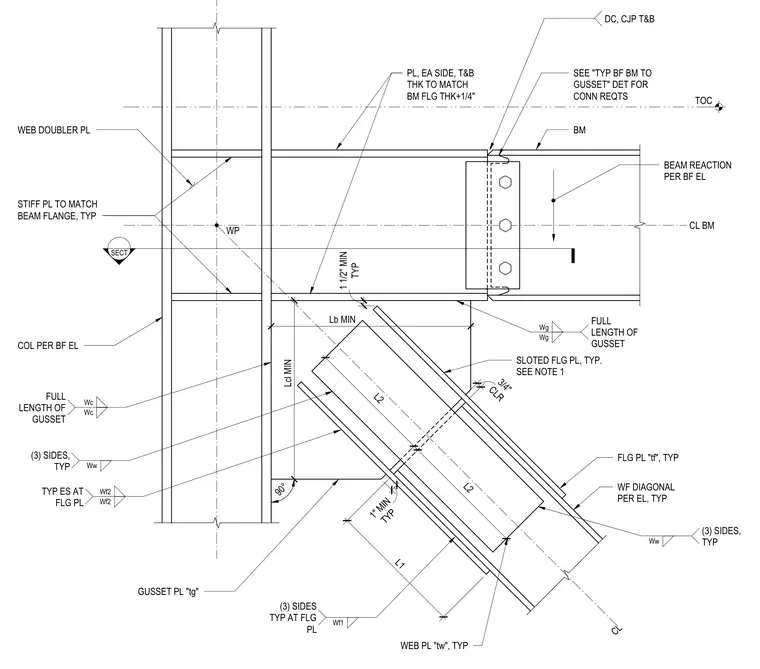

A wide-flange beam and wide-flange diagonal brace frame into a structural steel column with a gusset plate connection. The column receives a web doubler plate and horizontal stiffener plates matching the beam flange thickness. A slotted flange plate and web plate connect the diagonal brace to the gusset plate with specified fillet welds and complete joint penetration welds. Plates are sized per structural engineering design with specified clearances, edge distances, and a three-quarter-inch gap.
