Structural · S-APHGT

Exterior Strut at Foundation and Slab on Grade

Elements

Beams Floors / Slabs Foundations / Footings Arches Expansion / Control Joints Site / Paving

About this detail

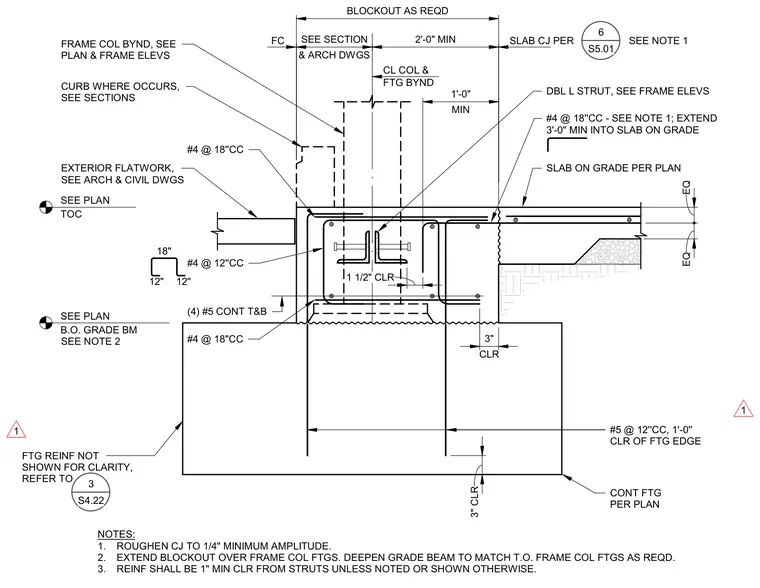

An exterior foundation grade beam and slab-on-grade connection is reinforced with a double-angle steel strut. The assembly features a continuous concrete footing with #5 reinforcing bars placed at twelve inches on center with one-foot clearance from the footing edge, along with four continuous #5 top and bottom bars. The double-angle strut is anchored within the grade beam, which includes a blockout as required and a construction joint roughened to one-quarter inch minimum amplitude. A slab on grade ties into the assembly with #4 bars spaced at eighteen inches on center extending three feet minimum into the slab. Exterior flatwork transitions at the building perimeter where indicated by architectural and civil drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
