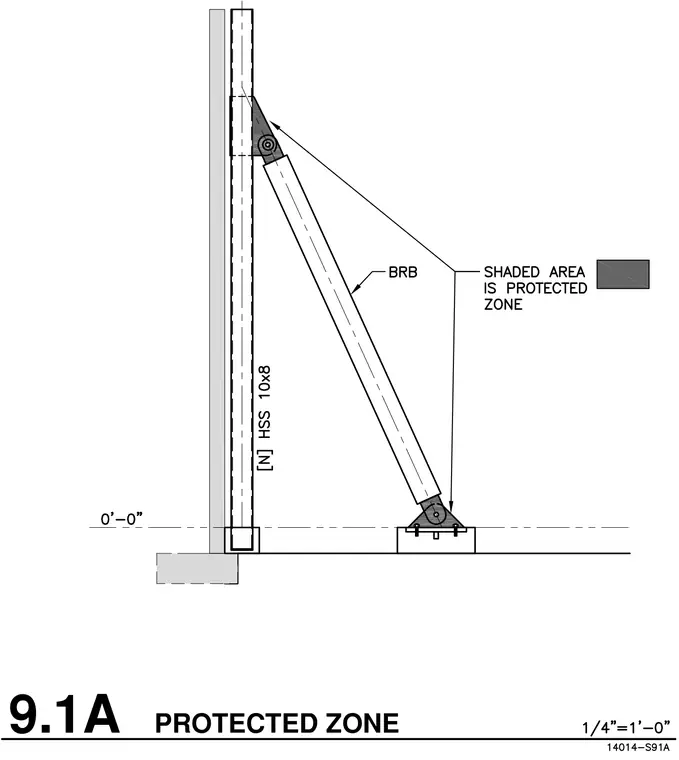

A new hollow structural section column sized at HSS 10x8 connects with a buckling restrained brace anchored to base plates and gusset connections. The shaded areas at the top and bottom gusset plate intersections are designated as protected zones per seismic design requirements. A datum elevation of zero feet zero inches marks the base connection level.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
