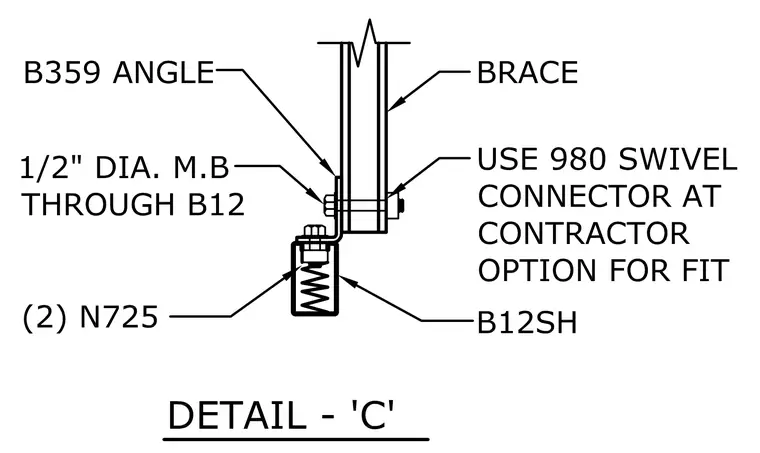

A vertical brace connects to a B12SH spring channel assembly using a B359 angle secured by a half-inch diameter machine bolt passing through channel B12. Two N725 components anchor within the spring channel. A 980 swivel connector can be used at the contractor's option for fit.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
