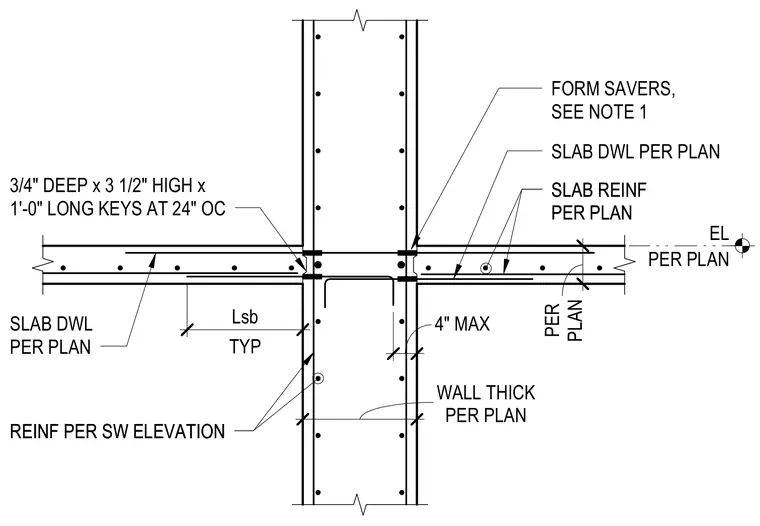

The reinforced concrete slab connects to a vertical concrete wall using continuous slab dowels and slab reinforcement sized per plan. Form savers are incorporated at the wall interface, paired with shear keys measuring 3/4 inch deep by 3 1/2 inches high by 1'-0" long spaced at 24 inches on center. Wall reinforcement is provided per the southwest elevation, with wall thickness designated per plan. Dimensioning includes a maximum 4-inch clearance and development length Lsb as typical.
PER PLAN EL 24" 24 3/8" 8" 5" 4" MAX PER PLAN WALL THICK PER PLAN Lsb 3/4" DEEP x 3 1/2" HIGH x 1'-0" LONG KEYS AT 24" OC SLAB DWL PER PLAN REINF PER SW ELEVATION FORM SAVERS, SEE NOTE 1 SLAB DWL PER PLAN SLAB REINF PER PLAN REINF PER SW ELEVATION SLAB REINF PER PLAN TYP
