Structural · S-AP6BW

Elevator Guiderail Support Post and Design Loads Plan

Materials

Steel

Elements

Columns

Connections

HSS Connection

About this detail

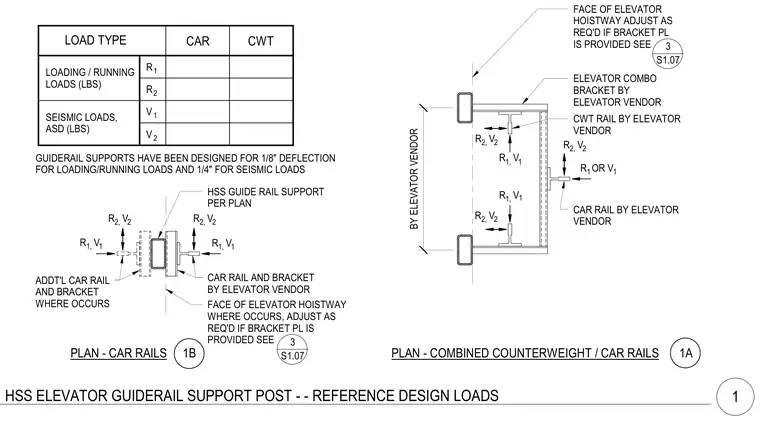

HSS elevator guiderail support posts coordinate with car rails, counterweight rails, and elevator combo brackets provided by the elevator vendor. Design loads specify running loads and allowable stress design seismic loads for both car and counterweight systems, noting deflection limits of one-eighth inch for running loads and one-quarter inch for seismic loads. Additional car rails and brackets are integrated at specific locations along the elevator hoistway face.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
