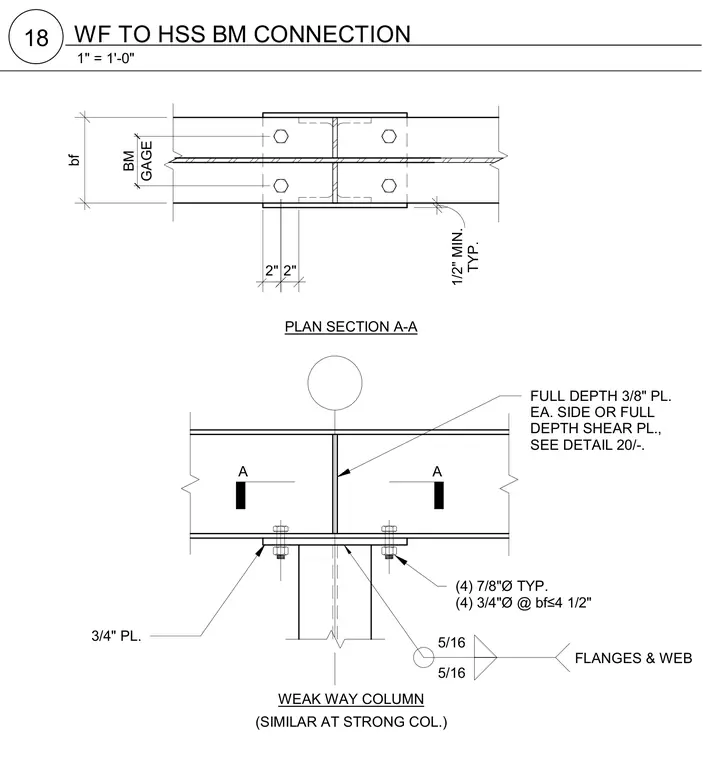

A wide flange beam frames into a weak-way hollow structural section column with a three-quarter inch seat plate welded to the column top. Four three-quarter inch diameter bolts secure the beam flange to the seat plate with a beam gauge less than or equal to four and a half inches. Full-depth three-eighth inch plates are attached to each side or as a full-depth shear plate with five-sixteenth inch fillet welds at the flanges and web. Four seven-eighth inch diameter typical bolts fasten the connection assembly. A half-inch minimum clearance is maintained.
(4) 7/8"Ø TYP. (4) 3/4"Ø @ bf≤4 1/2" FULL DEPTH 3/8" PL. EA. SIDE OR FULL DEPTH SHEAR PL., SEE DETAIL 20/-. A A 5/16 5/16 FLANGES & WEB bf TYP. 1/2" MIN. WEAK WAY COLUMN (SIMILAR AT STRONG COL.) PLAN SECTION A-A 2" 2" 3/4" PL. GAGE BM 1" = 1'-0" 18 WF TO HSS BM CONNECTION
