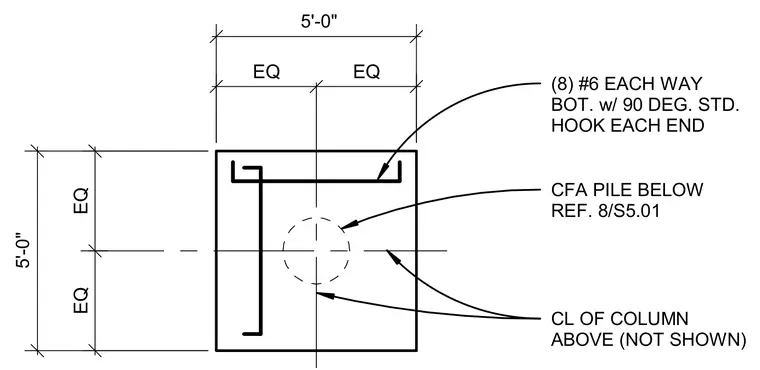

A square concrete pile cap measures five feet by five feet in plan dimension and supports a column above centered on the footing. Eight number six reinforcing bars run each way in the bottom of the cap, each terminating with a ninety-degree standard hook at each end. A continuous flight auger pile is located below at the center of the footing.
"A " EQ EQ "B" EQ EQ CL OF COLUMN ABOVE (NOT SHOWN) (8) #6 EACH WAY BOT. w/ 90 DEG. STD. HOOK EACH END CFA PILE BELOW REF. 8/S5.01 5'-0" 5'-0"
