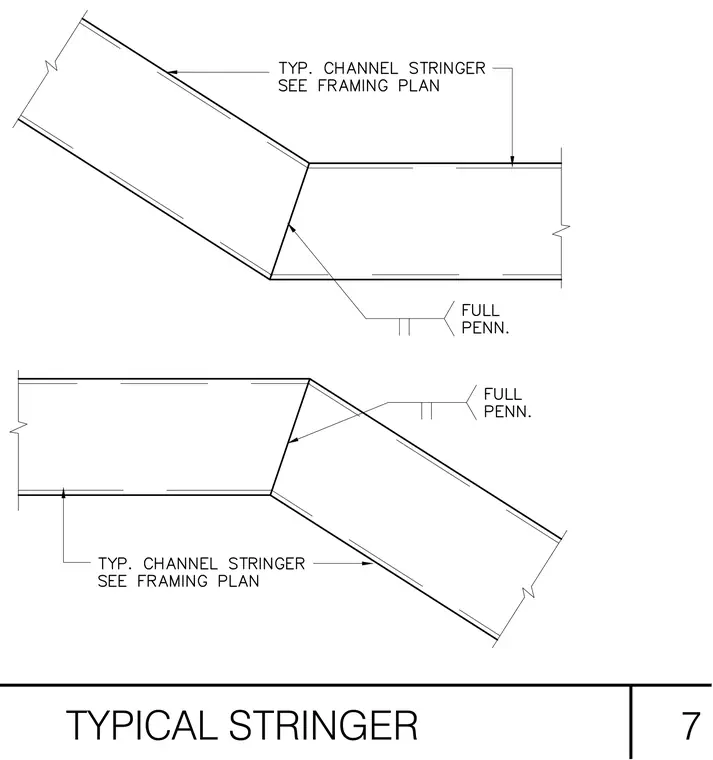

Two typical channel stringers meet at an angle change and connect via a mitered joint. Full penetration welds secure the joint between the abutting channel members. The channel stringer sizing and layout are coordinated per the structural framing plan.
