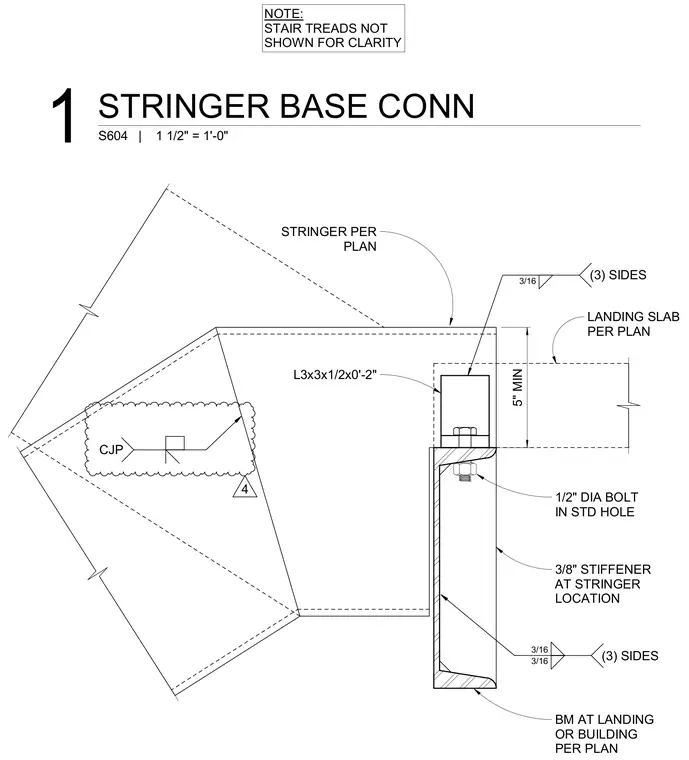

This connection joins a stair stringer to a landing beam or building slab per plan. An L3x3x1/2 angle, measuring zero feet two inches long, is welded to the stringer with three-sixteenth-inch fillets on three sides and a complete joint penetration weld. A half-inch diameter bolt in a standard hole fastens the connection to a three-eighth-inch stiffener plate located at the stringer position. The stiffener plate is welded to the landing beam with three-sixteenth-inch fillet welds on three sides.
NOTE: STAIR TREADS NOT SHOWN FOR CLARITY L3x3x1/2x0'-2" 1/2" DIA BOLT IN STD HOLE STRINGER PER PLAN 5" MIN 3/8" STIFFENER AT STRINGER LOCATION BM AT LANDING OR BUILDING PER PLAN 3/16 (3) SIDES 3/16 3/16 (3) SIDES LANDING SLAB PER PLAN CJP 4 S604 | 1 1/2" = 1'-0" 1 STRINGER BASE CONN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
