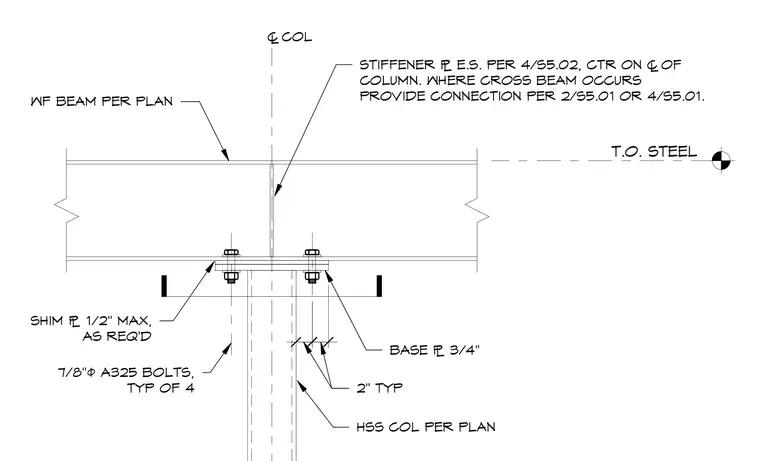

A wide-flange beam bears onto a three-quarter-inch thick base plate atop a hollow structural section column sized per plan. Four seven-eighth-inch diameter A325 bolts secure the connection, complemented by one-half-inch maximum shims as required. Stiffener plates are provided on each side, centered on the column centerline. Cross beam connections require a separate detail per plan references.
7/8"ø A325 BOLTS, TYP OF 4 STIFFENER ¯ E.S. PER 4/S5.02, CTR ON ® OF COLUMN. WHERE CROSS BEAM OCCURS PROVIDE CONNECTION PER 2/S5.01 OR 4/S5.01. WF BEAM PER PLAN BASE ¯ 3/4" HSS COL PER PLAN ® COL 2" TYP SHIM ¯ 1/2" MAX, AS REQ'D T.O. STEEL
