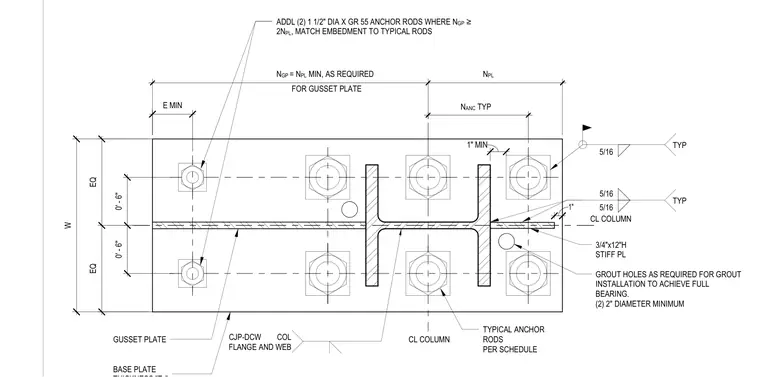

A buckling-restrained braced frame column base plate connection at the column flange features a steel base plate secured by anchor rods per schedule with additional 1 1/2-inch diameter Grade 55 anchor rods required where the gusset plate anchor count meets or exceeds twice the plate anchor count. A gusset plate connects to the column flange and web using complete joint penetration welds, supplemented by 3/4-inch by 12-inch stiffener plates welded with five-sixteenth-inch fillet welds. Grout holes of 2-inch minimum diameter are provided as required for grout installation to achieve full bearing beneath the base plate.
CL COLUMN 2' - 10 3/8" 1' - 4 3/4" CL COLUMN GUSSET PLATE N PL N GP = N PL MIN, AS REQUIRED E MIN TYPICAL ANCHOR RODS PER SCHEDULE ADDL (2) 1 1/2" DIA X GR 55 ANCHOR RODS WHERE N GP ≥ 2N PL , MATCH EMBEDMENT TO TYPICAL RODS CJP-DCW COL FLANGE AND WEB 0' - 6" 0' - 6" EQ EQ W BASE PLATE NA C T Y P N ANC TYP FOR GUSSET PLATE GROUT HOLES AS REQUIRED FOR GROUT INSTALLATION TO ACHIEVE FULL BEARING. (2) 2" DIAMETER MINIMUM 5/16 TYP 1" MIN 3/4"x12"H STIFF PL 5/16 5/16 TYP 1"
