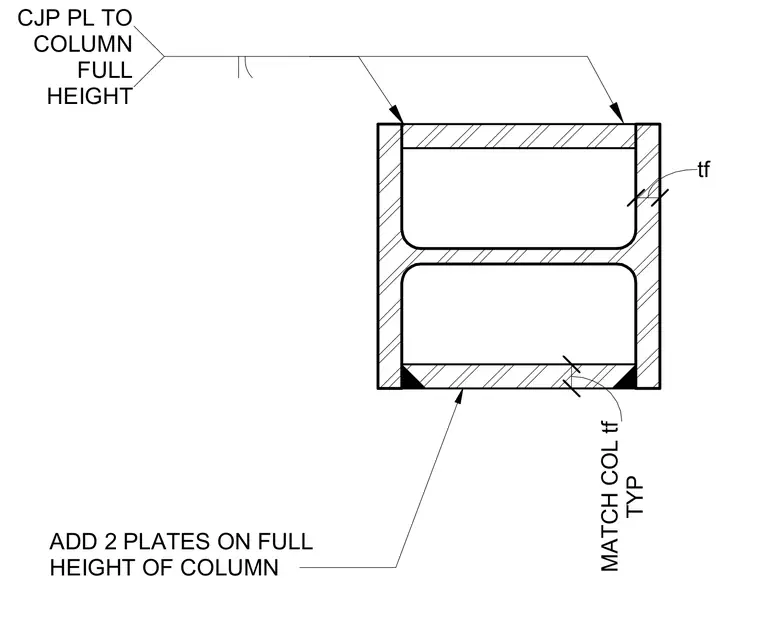

Two steel plates are added to the exterior faces of the column flanges to run the full height of the column. Complete joint penetration groove welds attach the plates to the column, matching the thickness of the column flange typically. The modification reinforces the steel column profile for increased load-bearing capacity.
ADD 2 PLATES ON FULL HEIGHT OF COLUMN TYP MATCH COL tf CJP PL TO COLUMN FULL HEIGHT tf
