Structural · S-AN99E

Elevated Concrete Slab Over Metal Deck

Materials

Concrete Reinforced Concrete Steel Timber / Wood

Elements

Roofs Floors / Slabs Decks Arches Bracing Anchors / Embeds Reinforcing

Connections

Bracing Connection Embed Plate

About this detail

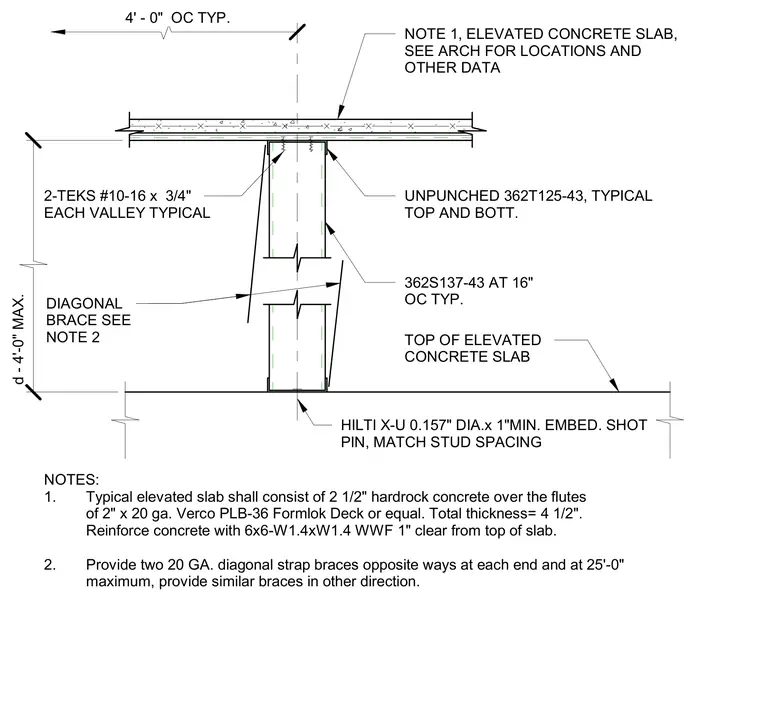

The assembly consists of two and a half inches of hardrock concrete poured over the flutes of a two-inch by twenty-gauge Verco PLB-36 Formlok metal deck, yielding a total thickness of four and a half inches. The concrete is reinforced with 6x6-W1.4xW1.4 welded wire fabric positioned one inch clear from the top of the slab. The metal deck bears on unpunched 362T125-43 track sections located at the top and bottom, supported by 362S137-43 studs spaced at sixteen inches on center typical. The metal deck is fastened to the framing with two TEKS number 10-16 by three-quarter inch screws in each valley typical. Two twenty-gauge diagonal strap braces are provided in opposite directions at each end and at twenty-five feet maximum, anchored with Hilti X-U zero point one five seven inch diameter by one-inch minimum embedment shot pins matching the stud spacing.
