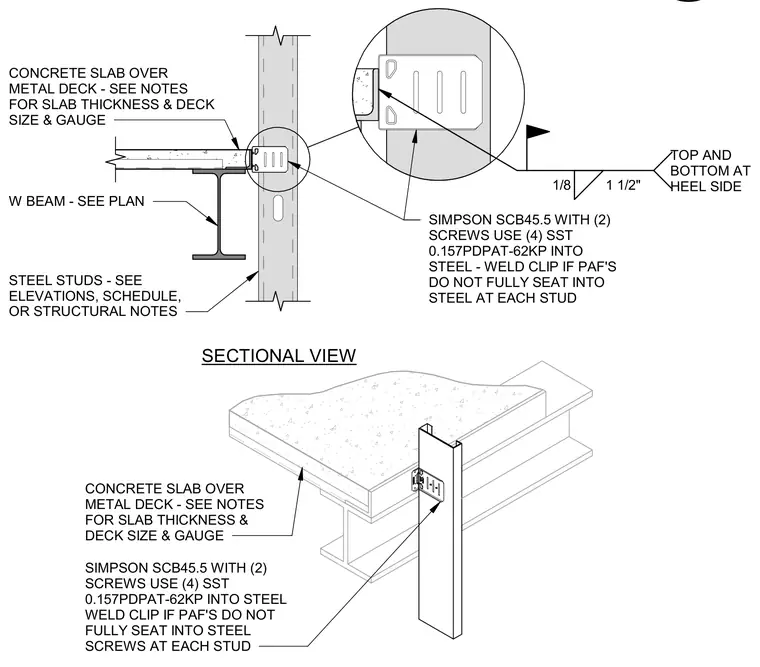

A Simpson SCB45.5 bypass clip connects cold-formed steel studs to the perimeter concrete slab over metal deck and a supporting wide-flange steel beam. The clip attaches to the stud using two screws and fastens to the steel structure with four SST 0.157-inch powder-actuated fasteners. The clip is welded top and bottom at the heel side with a one-eighth-inch fillet weld when the powder-actuated fasteners fail to fully seat into the steel at each stud.
SIMPSON SCB45.5 WITH (2) SCREWS USE (4) SST 0.157PDPAT-62KP INTO STEEL - WELD CLIP IF PAF'S DO NOT FULLY SEAT INTO STEEL AT EACH STUD CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS & DECK SIZE & GAUGE W BEAM - SEE PLAN SIMPSON SCB45.5 WITH (2) SCREWS USE (4) SST 0.157PDPAT-62KP INTO STEEL WELD CLIP IF PAF'S DO NOT FULLY SEAT INTO STEEL SCREWS AT EACH STUD STEEL STUDS - SEE ELEVATIONS, SCHEDULE, OR STRUCTURAL NOTES SECTIONAL VIEW CONCRETE SLAB OVER METAL DECK - SEE NOTES FOR SLAB THICKNESS & DECK SIZE & GAUGE 1/8 1 1/2" TOP AND BOTTOM AT HEEL SIDE
