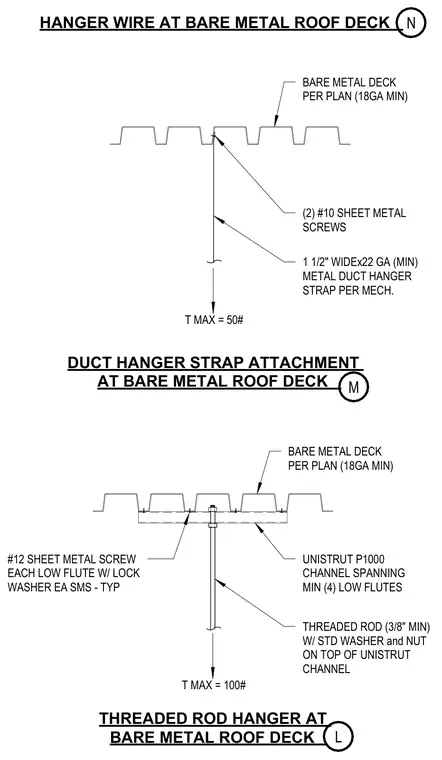

Ceiling and mechanical suspension attachments at an 18-gauge minimum bare metal roof deck. A duct hanger strap fastens directly to the underside of the deck using two number ten sheet metal screws, supporting a maximum tension load of fifty pounds. A three-eighths-inch minimum threaded rod suspends from a Unistrut P1000 channel that spans a minimum of four low flutes. The Unistrut channel secures to each low flute using number twelve sheet metal screws with lock washers. The threaded rod features a standard washer and nut on top of the Unistrut channel and supports a maximum tension load of one hundred pounds.
THREADED ROD HANGER AT BARE METAL ROOF DECK BARE METAL DECK PER PLAN (18GA MIN) UNISTRUT P1000 CHANNEL SPANNING MIN (4) LOW FLUTES THREADED ROD (3/8" MIN) W/ STD WASHER and NUT ON TOP OF UNISTRUT CHANNEL #12 SHEET METAL SCREW EACH LOW FLUTE W/ LOCK WASHER EA SMS - TYP T MAX = 100# DUCT HANGER STRAP ATTACHMENT AT BARE METAL ROOF DECK BARE METAL DECK PER PLAN (18GA MIN) (2) #10 SHEET METAL SCREWS 1 1/2" WIDEx22 GA (MIN) METAL DUCT HANGER STRAP PER MECH. T MAX = 50# HANGER WIRE AT BARE METAL ROOF DECK L M N
