Structural · S-AMXF5

Buckling-Restrained Braced Frame Double Brace Beam Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

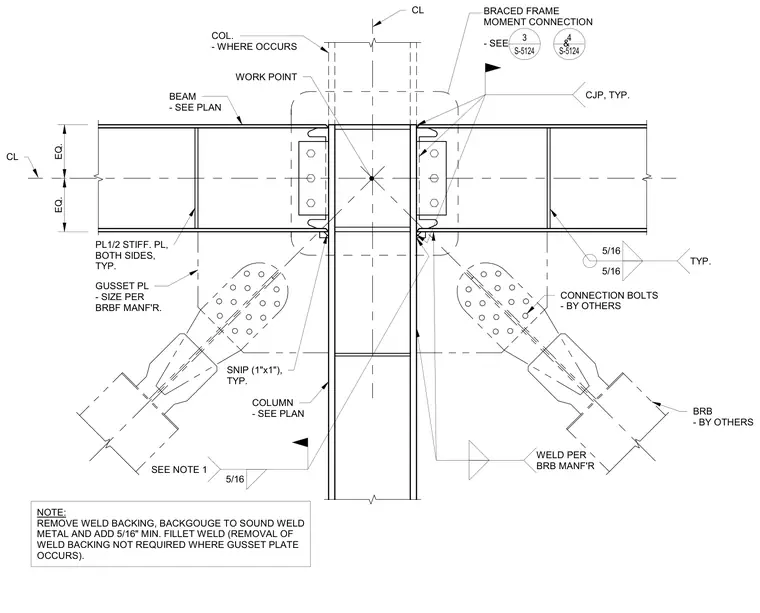

A structural buckling-restrained braced frame double brace connection occurs at a steel column and beam intersection. The assembly incorporates a vertical steel column where it occurs, intersecting horizontal steel beams sized per plan, and diagonal buckling-restrained braces provided by others. Gusset plates are sized per the buckling-restrained braced frame manufacturer and feature typical one-inch by one-inch snips. One-half-inch thick stiffener plates are welded to both sides of the beams. Complete joint penetration welds and five-sixteenth-inch fillet welds secure the connection components, with weld backing removed and backgouged to sound weld metal where specified, supplemented by a five-sixteenth-inch minimum fillet weld.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
