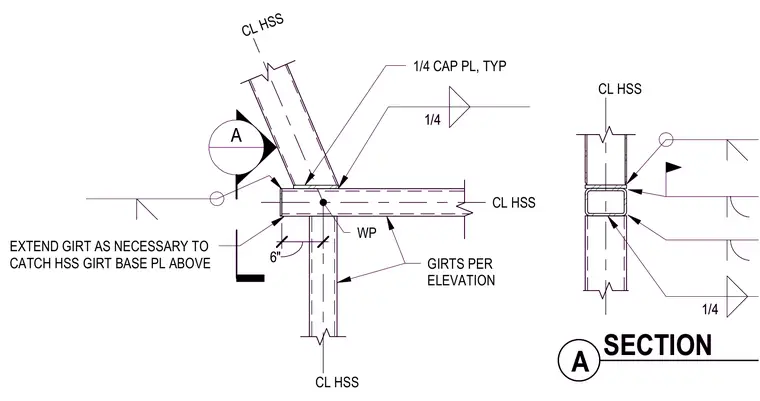

A connection between hollow structural section framing members includes a diagonal brace intersecting a horizontal girt and vertical support. A one-quarter-inch typical cap plate caps the horizontal hollow structural section member at the intersection. Fillet welds sized at one-quarter-inch secure the intersecting members together, with girts spaced per the elevation layout. An extension note specifies extending the girt as necessary to catch the hollow structural section girt base plate above.
A EXTEND GIRT AS NECESSARY TO CATCH HSS GIRT BASE PL ABOVE 1/4 A SECTION 1/4 CAP PL, TYP GIRTS PER ELEVATION CL HSS WP CL HSS CL HSS CL HSS 6" 1/4 A EXTEND GIRT AS NECESSARY TO CATCH HSS GIRT BASE PL ABOVE 1/4 A SECTION 1/4 CAP PL, TYP GIRTS PER ELEVATION CL HSS WP CL HSS CL HSS CL HSS 6" 1/4
