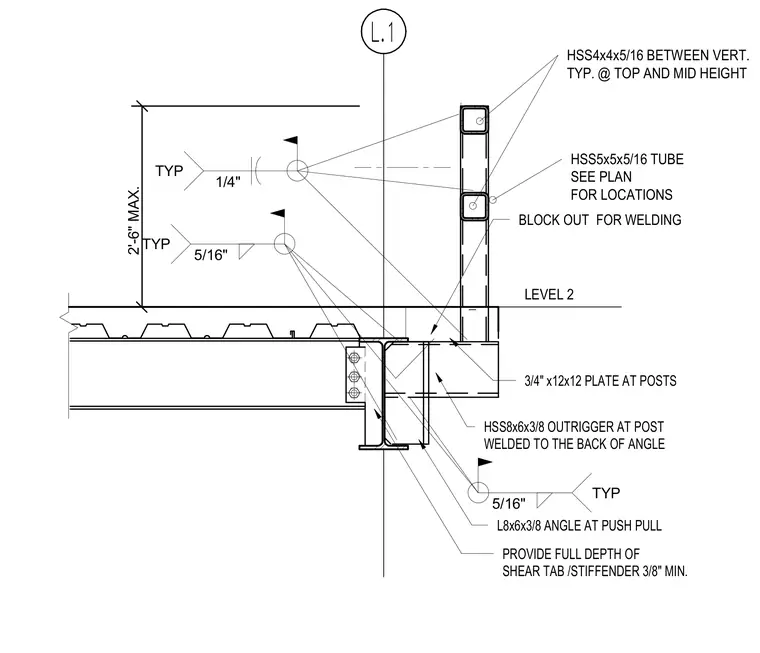

An HSS8x6x3/8 outrigger is welded to the back of an L8x6x3/8 angle at the push-pull connection, with a 3/4-inch by 12-inch by 12-inch plate at the posts. A full-depth shear tab or stiffener of 3/8-inch minimum thickness is provided with a block-out for welding. Vertical HSS4x4x5/16 tubes span between verticals typically at the top and mid-height, alongside an HSS5x5x5/16 tube located per plan. Fillet welds of 1/4-inch and 5/16-inch sizes are applied typically throughout the assembly.
2'-6" MAX. L.1 LEVEL 2 1/4" TYP BLOCK OUT FOR WELDING PROVIDE FULL DEPTH OF SHEAR TAB /STIFFENDER 3/8" MIN. 3/4" x12x12 PLATE AT POSTS 5/16" TYP 5/16" TYP HSS8x6x3/8 OUTRIGGER AT POST WELDED TO THE BACK OF ANGLE L8x6x3/8 ANGLE AT PUSH PULL HSS5x5x5/16 TUBE SEE PLAN FOR LOCATIONS HSS4x4x5/16 BETWEEN VERT. TYP. @ TOP AND MID HEIGHT
