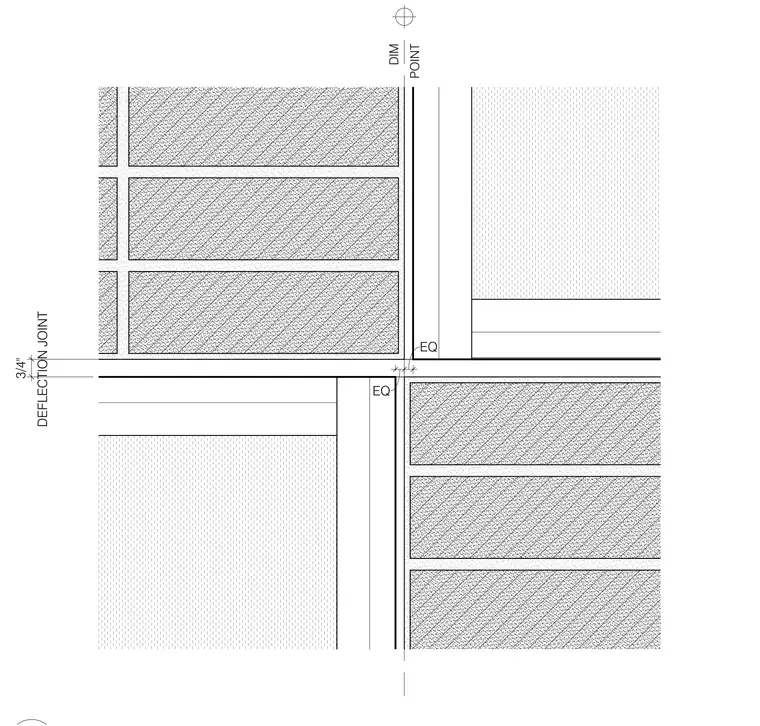

This plan detail shows an offset window corner assembly featuring a three-quarter-inch deflection joint between aligned dimension points. Equal spacing is maintained on both sides of the dimension point intersections.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
