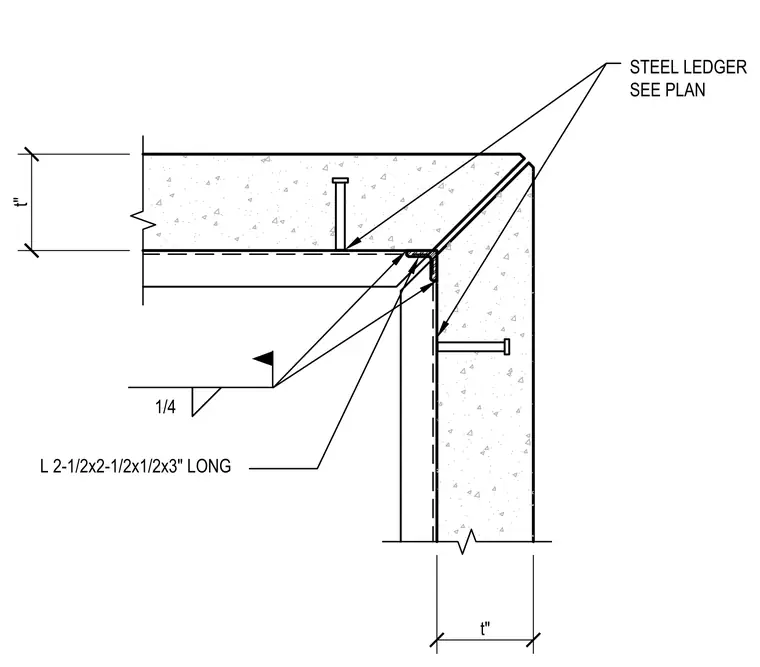

This assembly features a 2-1/2 inch by 2-1/2 inch by 1/2 inch steel angle ledger, 3 inches long, mitered to fit the corner of a concrete panel. The ledger is secured to the concrete substrate using headed studs. A 1/4 inch fillet weld is specified for the connection of the ledger components at the corner. The ledger size and placement are to be verified per the project plans.
Text on the drawing
t" t" L 2-1/2x2-1/2x1/2x3" LONG STEEL LEDGER SEE PLAN 1/4 PLAN VIEW
