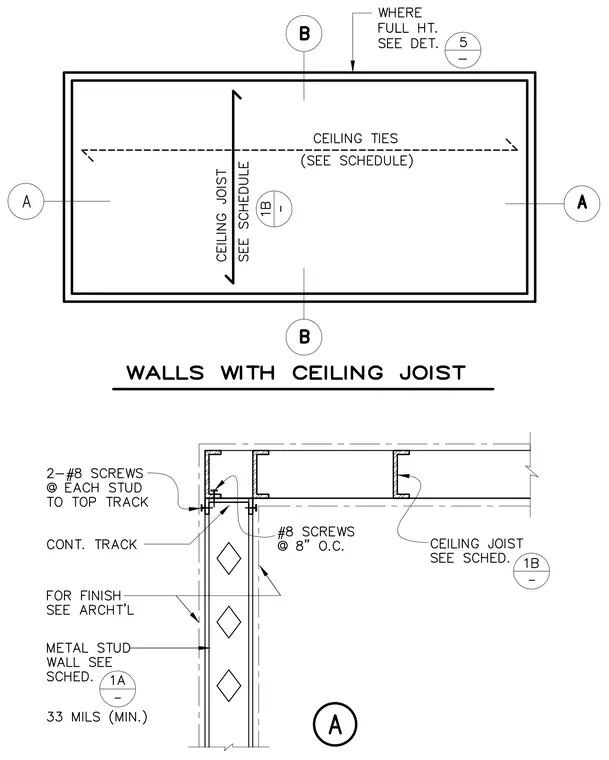

Cold-formed metal stud wall framing features a continuous top track connected with two number 8 screws at each stud. Ceiling joists are spaced and sized per schedule and secured with number 8 screws at eight inches on center. The metal stud wall is specified at 33 mils minimum thickness, with finishes detailed on architectural drawings.
