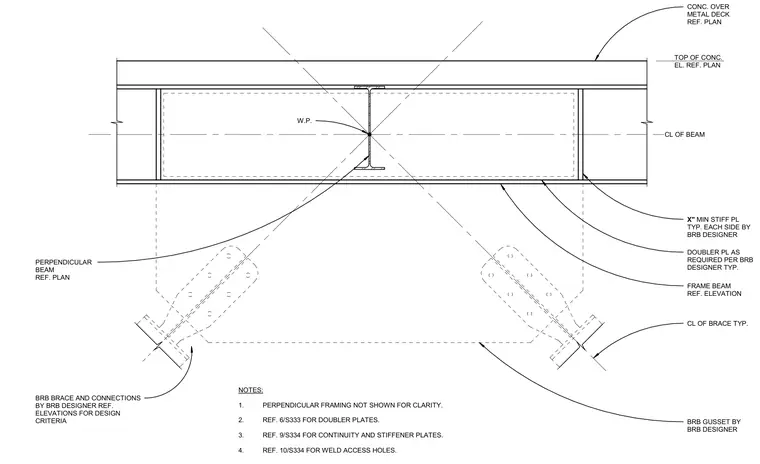

A buckling-restrained brace chevron connection frames into a steel beam supporting concrete over a metal deck. The assembly features a gusset plate and brace connections designed by the buckling-restrained brace designer, with doubler plates and stiffener plates provided as required on each side of the web. Centerlines for the beam and brace intersect at a common work point. Perpendicular framing is omitted for clarity, and referenced sheets govern doubler plates, continuity plates, stiffener plates, and weld access holes.
TOP OF CONC. EL. REF. PLAN CONC. OVER METAL DECK REF. PLAN W.P. CL OF BEAM FRAME BEAM REF. ELEVATION DOUBLER PL AS REQUIRED PER BRB DESIGNER TYP. X" MIN STIFF PL TYP. EACH SIDE BY BRB DESIGNER PERPENDICULAR BEAM REF. PLAN BRB BRACE AND CONNECTIONS BY BRB DESIGNER REF. ELEVATIONS FOR DESIGN CRITERIA CL OF BRACE TYP. NOTES: 1. PERPENDICULAR FRAMING NOT SHOWN FOR CLARITY. 2. REF. 6/S333 FOR DOUBLER PLATES. 3. REF. 9/S334 FOR CONTINUITY AND STIFFENER PLATES. 4. REF. 10/S334 FOR WELD ACCESS HOLES. BRB GUSSET BY BRB DESIGNER
