Diagonal Wall Stud Bracing Connection at Concrete Metal Deck

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Walls Partitions Ceilings Decks Arches Bracing

Connections

Bracing Connection Deck Attachment

About this detail

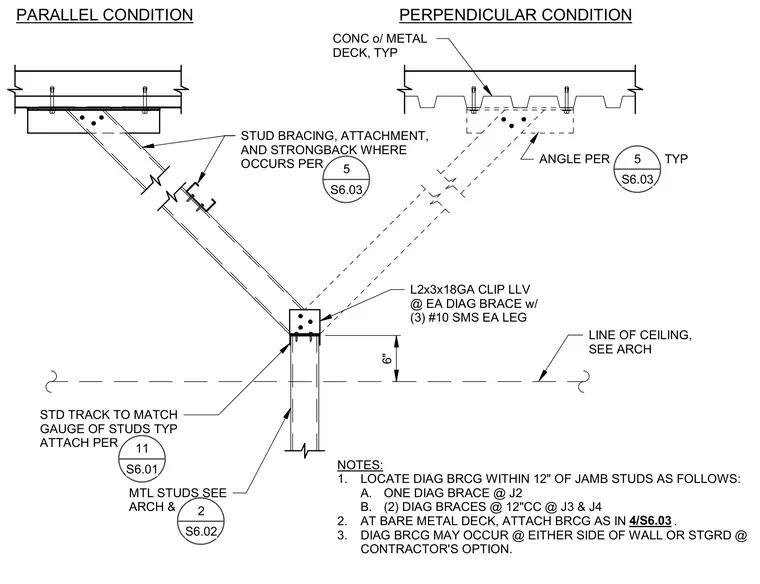

A diagonal wall stud bracing frames up to a concrete slab on metal deck. The diagonal brace connects to the wall framing via an L2x3x18-gauge clip angle fastened with three number ten sheet metal screws on each leg. Standard tracks match the gauge of the studs, with attachments coordinated per architectural drawings. Diagonal bracing is located within twelve inches of jamb studs, utilizing one brace at J2 or two braces at twelve inches on center at J3 and J4. Bracing may occur on either side of the wall or staggered at the contractor's option.
