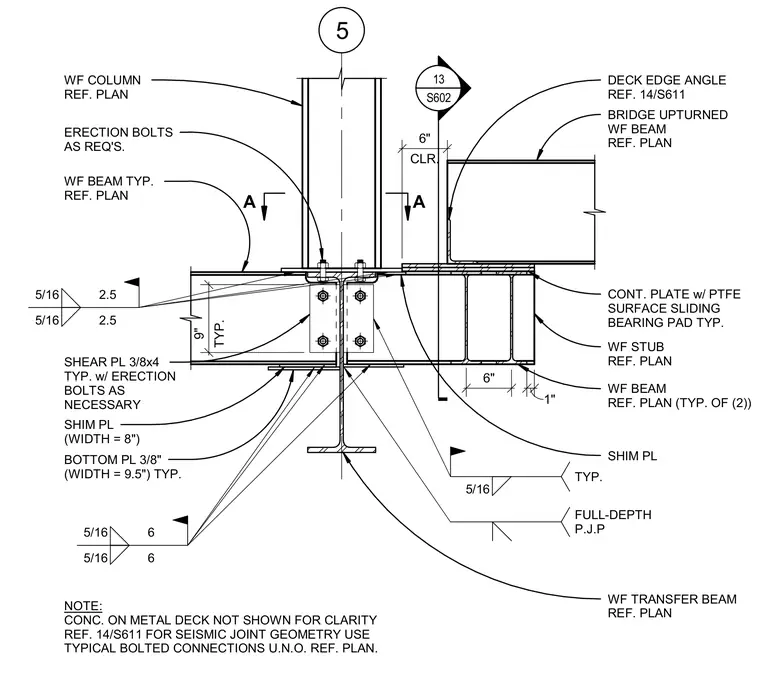

A wide-flange steel transfer beam and column connection features a continuous plate with a PTFE surface sliding bearing pad supporting a wide-flange stub and bridge upturned wide-flange beam. The connection utilizes a 3/8-inch by 4-inch typical shear plate with erection bolts, a 3/8-inch bottom plate that is 9.5 inches wide, and shim plates with an 8-inch width. Five-sixteenth-inch fillet welds and full-depth partial-joint-penetration welds secure the steel elements together. Erection bolts are provided as required, and concrete on the metal deck is omitted for clarity.
WF COLUMN REF. PLAN ERECTION BOLTS AS REQ'S. WF BEAM TYP. REF. PLAN 5/16 2.5 5/16 2.5 SHIM PL (WIDTH = 8") BOTTOM PL 3/8" (WIDTH = 9.5") TYP. 5/16 6 5/16 6 A A DECK EDGE ANGLE REF. 14/S611 BRIDGE UPTURNED WF BEAM REF. PLAN NOTE: CONC. ON METAL DECK NOT SHOWN FOR CLARITY REF. 14/S611 FOR SEISMIC JOINT GEOMETRY USE TYPICAL BOLTED CONNECTIONS U.N.O. REF. PLAN. TYP. 9" 6" SHIM PL CONT. PLATE w/ PTFE SURFACE SLIDING BEARING PAD TYP. WF STUB REF. PLAN WF BEAM REF. PLAN (TYP. OF (2)) 5/16 TYP. FULL-DEPTH P.J.P WF TRANSFER BEAM REF. PLAN CLR. 6" 1" 13 S602 SHEAR PL 3/8x4 TYP. w/ ERECTION BOLTS AS NECESSARY 5
