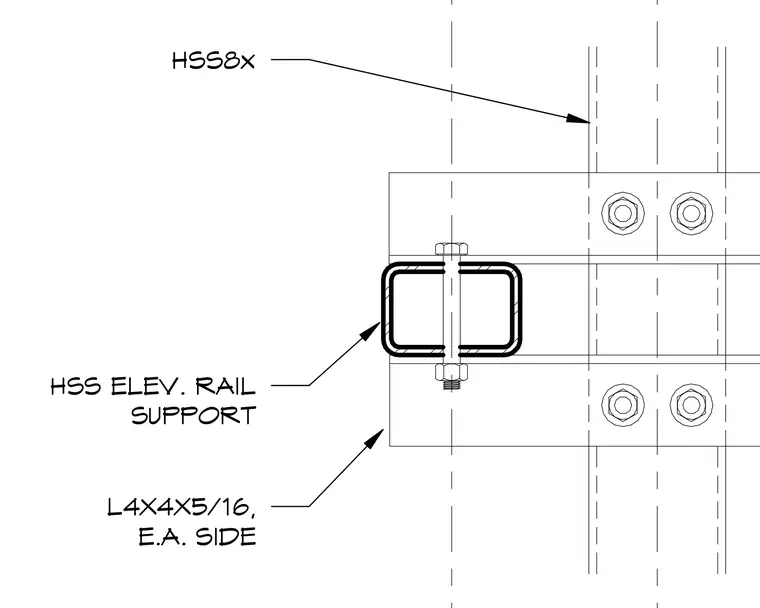

An HSS8x elevator rail support connects to a structural assembly using 4x4x5/16 angles placed on each side. The assembly is secured using through-bolts passing horizontally through the rail support and the connecting angles. Additional connection bolts attach the structural angles back to the main framing members.
HSS8x L4X4X5/16, E.A. SIDE HSS ELEV. RAIL SUPPORT
