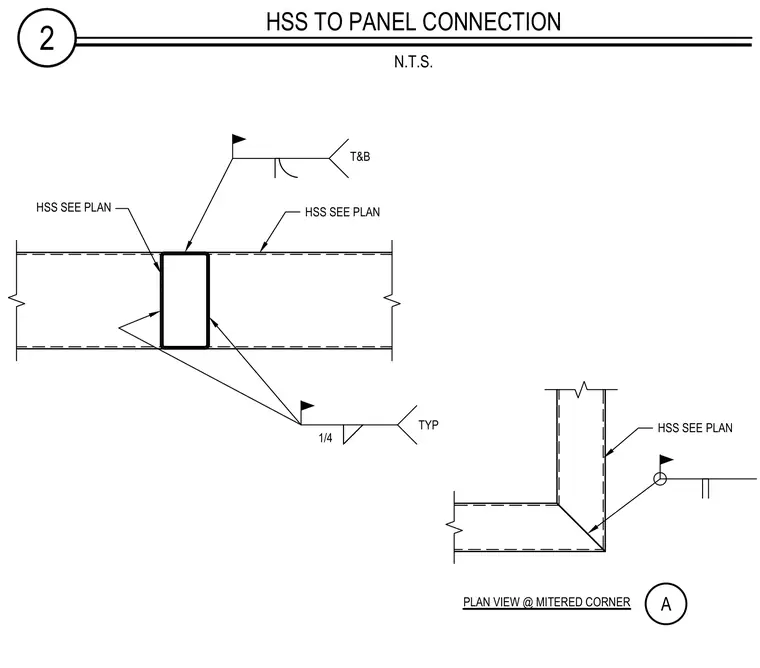

Hollow structural section members connect to panels with typical quarter-inch welds at top and bottom. A secondary plan view shows the hollow structural section framing condition at a mitered corner with field welds indicated. Member sizes are sized per plan.
HSS SEE PLAN HSS SEE PLAN 1/4 TYP T&B HSS SEE PLAN PLAN VIEW @ MITERED CORNER A 2 HSS TO PANEL CONNECTION N.T.S.
