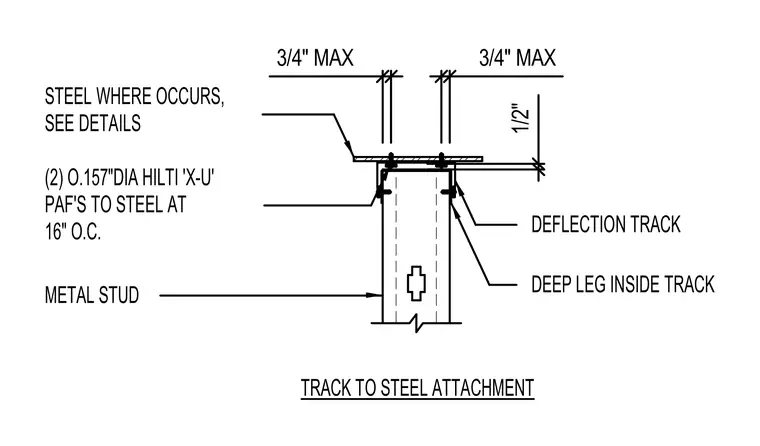

A metal stud framing assembly connects to overhead structural steel using a deflection track with a deep leg nested inside the track. Two 0.157 inch diameter Hilti X-U powder-actuated fasteners secure the track to the steel substrate at 16 inches on center. A maximum 3/4 inch gap accommodates vertical movement, with a 1/2 inch dimension detailing the connection clearance.
STEEL WHERE OCCURS, (2) O.157"DIA HILTI 'X-U' PAF'S TO STEEL AT 16" O.C. DEFLECTION TRACK DEEP LEG INSIDE TRACK METAL STUD TRACK TO STEEL ATTACHMENT SEE DETAILS 1/2" 3/4" MAX 3/4" MAX
