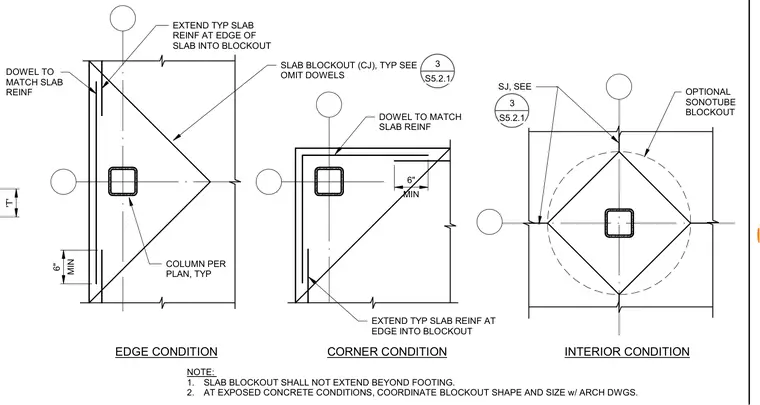

Concrete slab blockouts occur around columns at edge, corner, and interior conditions with associated reinforcement dowels. Typical slab reinforcement at the edge of the slab extends into the blockout with a minimum six-inch lap. Dowels match the slab reinforcement and are omitted at control joints where indicated. An optional sonotube blockout is provided at interior conditions, and slab blockouts do not extend beyond the footing.
'T' SJ, SEE OPTIONAL SONOTUBE BLOCKOUT NOTE: 1. SLAB BLOCKOUT SHALL NOT EXTEND BEYOND FOOTING. 2. AT EXPOSED CONCRETE CONDITIONS, COORDINATE BLOCKOUT SHAPE AND SIZE w/ ARCH DWGS. DOWEL TO MATCH SLAB REINF EXTEND TYP SLAB REINF AT EDGE OF SLAB INTO BLOCKOUT COLUMN PER PLAN, TYP SLAB BLOCKOUT (CJ), TYP SEE OMIT DOWELS EDGE CONDITION DOWEL TO MATCH SLAB REINF EXTEND TYP SLAB REINF AT EDGE INTO BLOCKOUT CORNER CONDITION MIN 6" MIN 6" INTERIOR CONDITION 3 S5.2.1 3 S5.2.1
