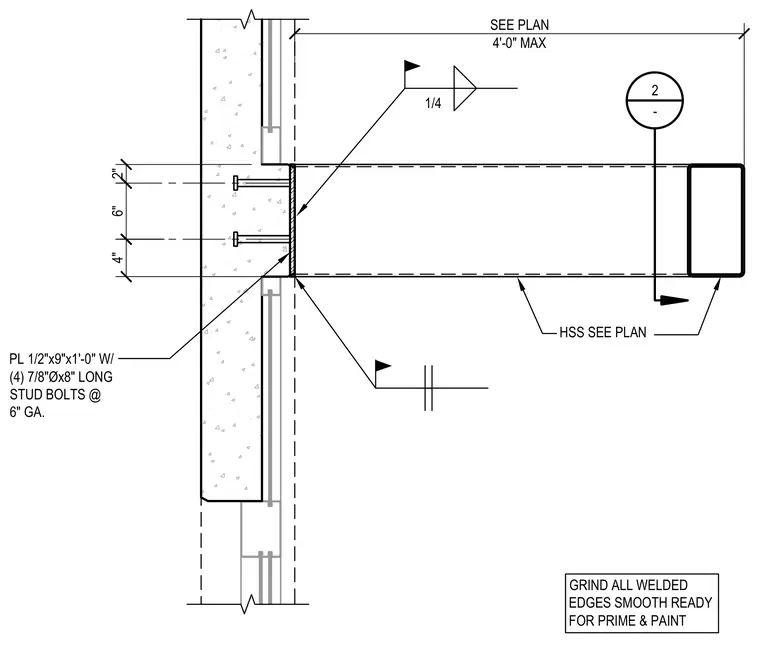

A hollow structural section canopy member is welded to a one-half-inch by nine-inch by one-foot-zero-inch plate anchored by four seven-eighth-inch diameter by eight-inch long stud bolts at six-inch gauge. All welded edges are ground smooth and prepared for prime and paint. The canopy projects a maximum of four feet per plan.
HSS SEE PLAN 1/4 2" 6" 4" GRIND ALL WELDED EDGES SMOOTH READY FOR PRIME & PAINT PL 1/2"x9"x1'-0" W/ (4) 7/8"Øx8" LONG STUD BOLTS @ 6" GA. SEE PLAN 4'-0" MAX 2 -
