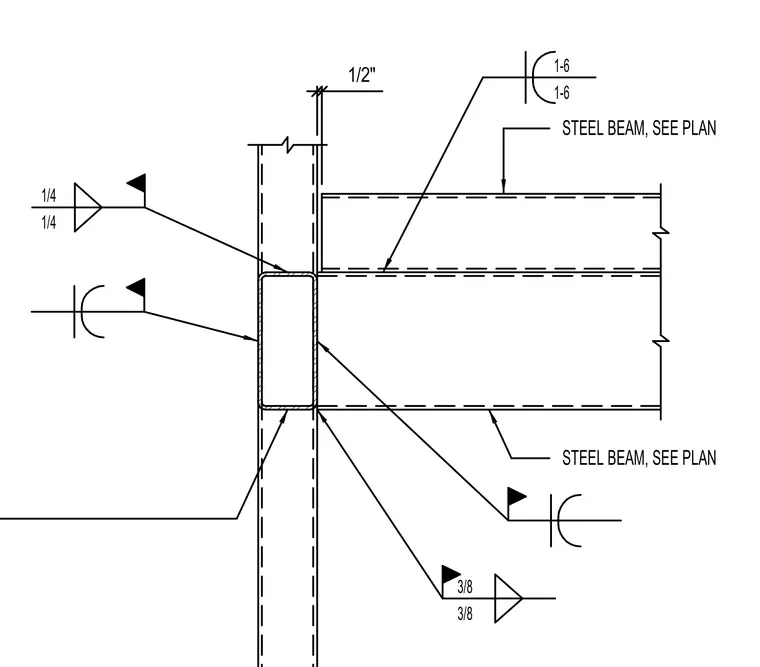

Steel beams frame into a vertical steel member, sized per plan. The connection incorporates 1/4-inch and 3/8-inch fillet welds, along with a 1/2-inch dimension gap. Weld symbols and member alignments govern the interface between the steel elements.
