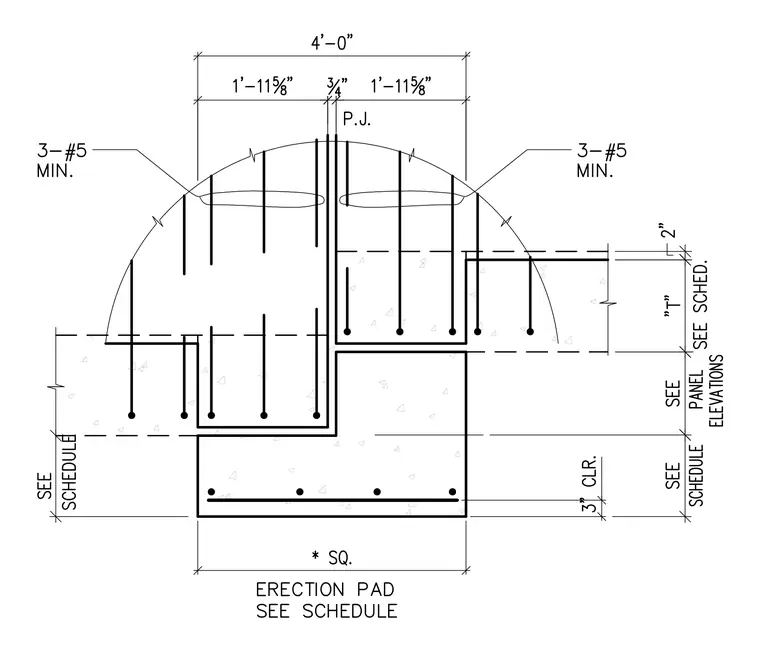

A concrete erection pad features a square dimension specified in the schedule with three number five minimum reinforcing bars. A three-quarter-inch panel joint is centered above the pad with adjacent concrete panels supported on the foundation. Vertical and horizontal reinforcing bars extend through the assembly with dimensions provided for clearances and panel thickness as noted in the schedule.
