Structural · S-AK4G5

Slope Change at Landing Between Beams

Materials

Concrete Steel

Elements

Beams Stairs Decks

Connections

Welded Connection Deck Attachment

About this detail

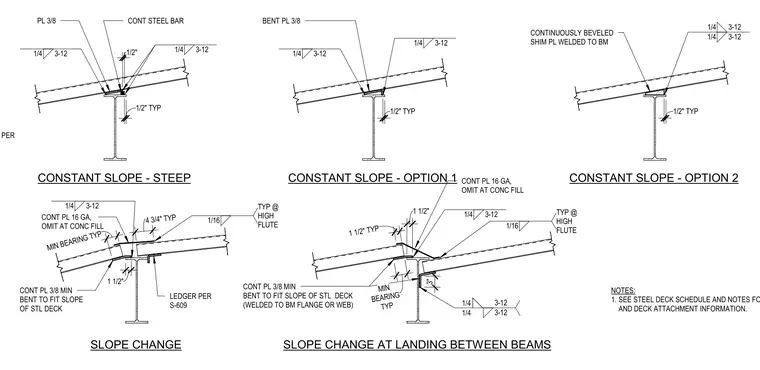

These structural steel details illustrate multiple slope change options and landing conditions for steel deck bearing on beams. The assembly incorporates continuous three-eighths-inch plates bent to fit the slope of the steel deck, continuously beveled shim plates, and continuous steel bars welded to the beam flange or web with quarter-inch fillet welds spaced at twelve inches. Additional options include sixteen-gauge continuous plates omitted at concrete fill, custom ledger angles, and minimum three-inch bearing requirements. Attachment details follow the structural steel deck schedule and notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
