Structural · S-AK2H7

Typical IMP Base Detail at 16" Concrete Curb

Materials

Concrete Steel Metal (misc.)

Elements

Columns Walls Floors / Slabs Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

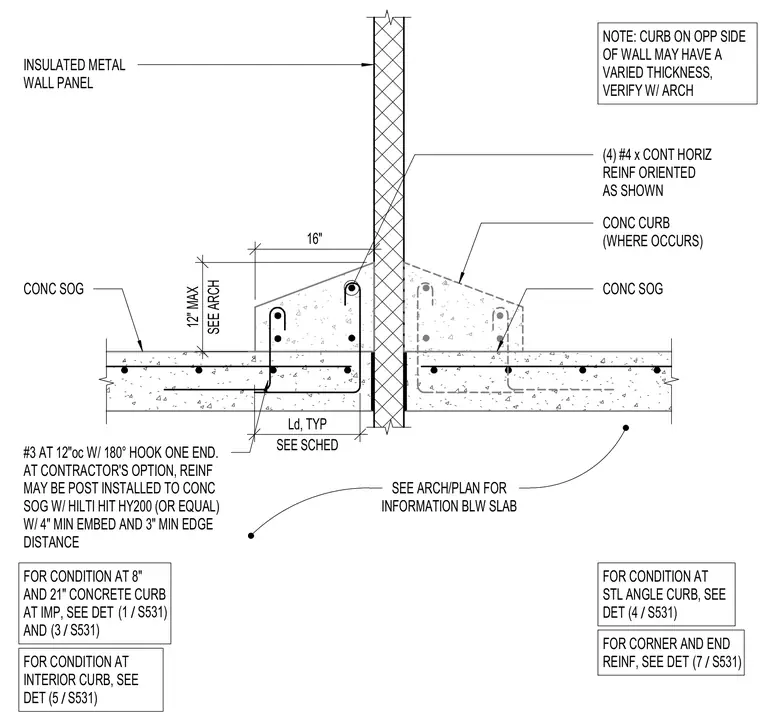

Insulated metal wall panel base supported on a sixteen-inch concrete curb and concrete slab on grade. Concrete slab on grade reinforced with number three bars at twelve inches on center with one-hundred-eighty-degree hooks on one end, or alternatively post-installed into the concrete slab using Hilti HIT-HY200 adhesive anchor or equal with four-inch minimum embedment and three-inch minimum edge distance. Four continuous number four horizontal reinforcing bars oriented as shown within the concrete curb. Concrete curb height reaches twelve inches maximum per architectural drawings.
