BRBF Single Brace Beam Column Connection

Materials

Steel Metal (misc.)

Elements

Columns Beams Bracing Connections / Plates

Connections

Moment Connection Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

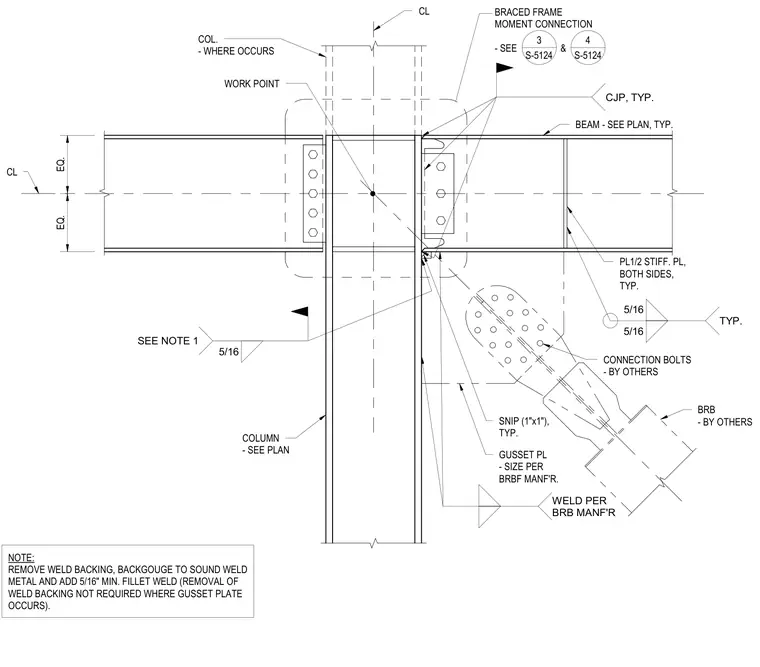

A buckling restrained braced frame single brace-beam-column connection consists of a column connecting to intersecting beams sized per plan, featuring a gusset plate sized per the buckling restrained brace manufacturer and welded with complete joint penetration welds. Stiffener plates measuring one-half inch thick are welded to both sides of the members using five-sixteenth-inch fillet welds. Connection bolts are provided by others, and the brace connects per the manufacturer specifications with typical one-inch by one-inch snips. Weld backing is removed, backgouged to sound weld metal, and supplemented with a five-sixteenth-inch minimum fillet weld where required.
