Structural · S-AJYF9

Side-By-Side Openings

Materials

Concrete Reinforced Concrete

Elements

Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Embed Plate

About this detail

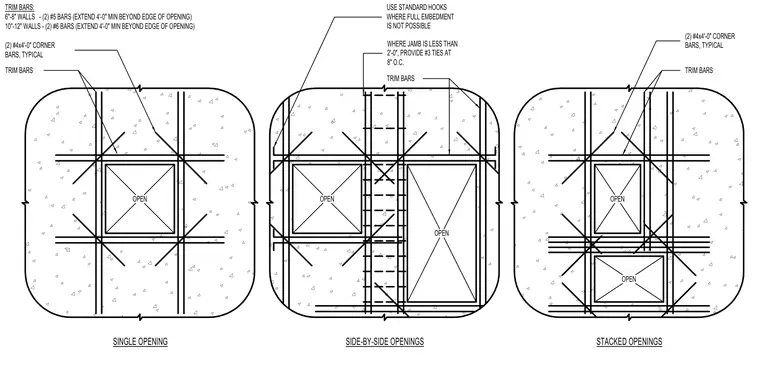

Reinforced concrete wall openings feature specific trim bars and corner bars to maintain structural integrity. For six to eight inch walls, two number five trim bars extend four feet minimum beyond the edge of the opening. For ten to twelve inch walls, two number six trim bars extend four feet minimum beyond the edge of the opening. Two number four by four foot corner bars are placed typically at each corner. Where the jamb is less than two feet, number three ties are provided at eight inches on center, and standard hooks are used where full embedment is not possible.
