Horizontal bridging and connection options for cold-formed metal framing using 150U050-54 metal studs spaced with bridging at four feet on center. Option A utilizes a 1-1/2 inch by 1-1/2 inch by 54 mils clip angle secured with four number 8 sheet metal screws, or alternatively a Simpson MSUBH3.25 connector. Option B utilizes a punch-out tab bent down and fastened with two number 8 sheet metal screws. Bridging is omitted where properly attached sheathing other than gypsum occurs on both sides of studs for a maximum eight-inch stud depth.

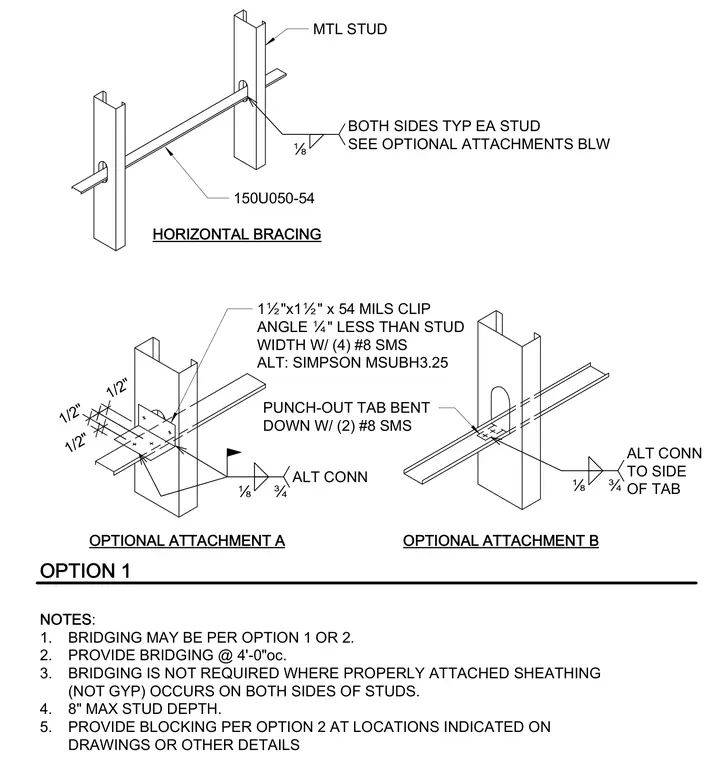

1/2" 1/2" 1/2" OPTIONAL ATTACHMENT A HORIZONTAL BRACING OPTIONAL ATTACHMENT B NOTES : 1. BRIDGING MAY BE PER OPTION 1 OR 2. 2. PROVIDE BRIDGING @ 4'-0"oc. 3. BRIDGING IS NOT REQUIRED WHERE PROPERLY ATTACHED SHEATHING (NOT GYP) OCCURS ON BOTH SIDES OF STUDS. 4. 8" MAX STUD DEPTH. 5. PROVIDE BLOCKING PER OPTION 2 AT LOCATIONS INDICATED ON DRAWINGS OR OTHER DETAILS 1Ï"x1Ï" x 54 MILS CLIP ANGLE Ë" LESS THAN STUD WIDTH W/ (4) #8 SMS ALT: SIMPSON MSUBH3.25 PUNCH-OUT TAB BENT DOWN W/ (2) #8 SMS 150U050-54 MTL STUD É BOTH SIDES TYP EA STUD SEE OPTIONAL ATTACHMENTS BLW OPTION 1 É Ó ALT CONN TO SIDE OF TAB É Ó ALT CONN
