Isolated openings under six inches in diameter do not require reinforcement when spacing exceeds four times the largest hole diameter. The deck span direction is indicated alongside the opening criteria.

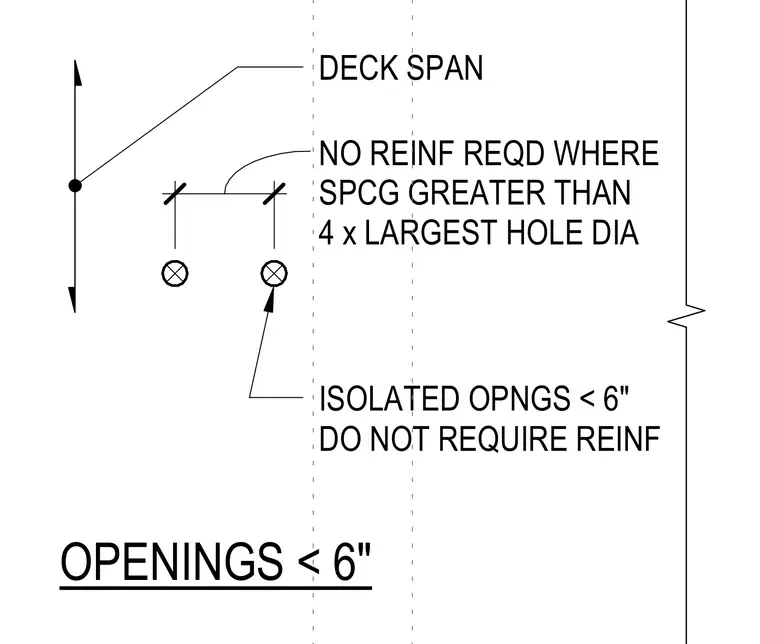

OPENINGS < 6" 24" NO REINF REQD WHERE SPCG GREATER THAN 4 x LARGEST HOLE DIA ISOLATED OPNGS < 6" DO NOT REQUIRE REINF DECK SPAN
