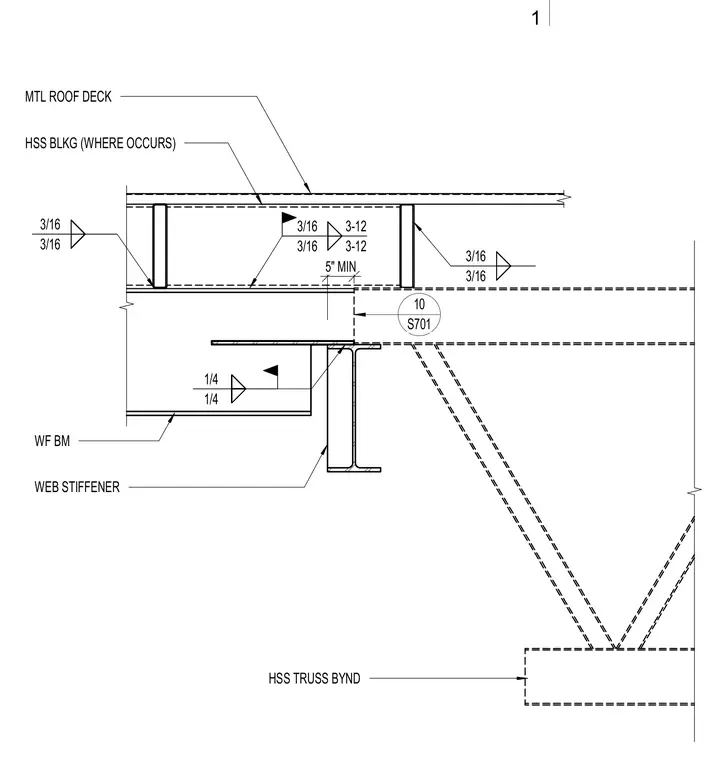

A wide-flange beam connects to a web stiffener plate with a one-quarter inch fillet weld. Hollow structural section blocking occurs where required beneath the metal roof deck. A hollow structural section truss is positioned beyond the primary framing members, with welds specified at three-sixteenths of an inch.
MTL ROOF DECK HSS BLKG (WHERE OCCURS) 3/16 3/16 3-12 3-12 HSS TRUSS BYND 3/16 3/16 10 S701 1/4 1/4 5" MIN WF BM WEB STIFFENER 3/16 3/16 1
