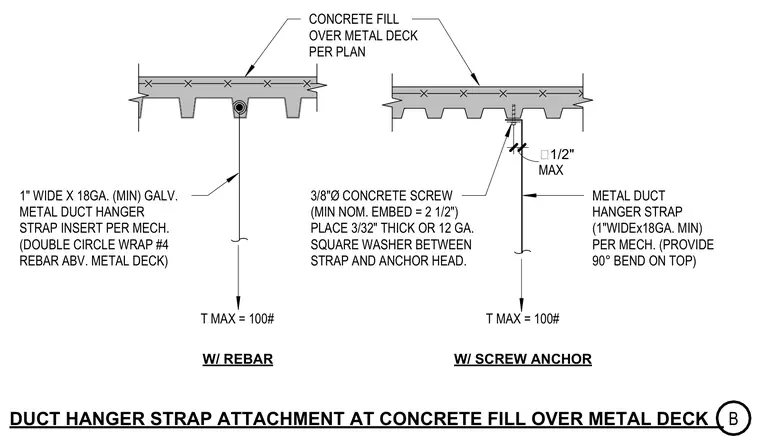

The assembly secures mechanical duct hanger straps to a concrete fill over metal deck floor system using two alternative methods with a maximum tension load of one hundred pounds. The first detail utilizes a one-inch wide by eighteen gauge minimum galvanized metal duct hanger strap insert wrapped around a number four reinforcing bar positioned above the metal deck. The second detail fastens a one-inch wide by eighteen gauge minimum metal duct hanger strap with a ninety degree bend on top using a three-eighths-inch diameter concrete screw with a minimum nominal embedment of two and one-half inches. A three-thirty-second-inch thick or twelve gauge square washer is placed between the strap and the anchor head with a maximum one-half-inch offset.
DUCT HANGER STRAP ATTACHMENT AT CONCRETE FILL OVER METAL DECK T MAX = 100# METAL DUCT HANGER STRAP (1"WIDEx18GA. MIN) PER MECH. (PROVIDE 90° BEND ON TOP) 3/8"Ø CONCRETE SCREW (MIN NOM. EMBED = 2 1/2") PLACE 3/32" THICK OR 12 GA. SQUARE WASHER BETWEEN STRAP AND ANCHOR HEAD. MAX 1/2" 1" WIDE X 18GA. (MIN) GALV. METAL DUCT HANGER STRAP INSERT PER MECH. (DOUBLE CIRCLE WRAP #4 REBAR ABV. METAL DECK) T MAX = 100# CONCRETE FILL OVER METAL DECK PER PLAN W/ SCREW ANCHOR W/ REBAR B
