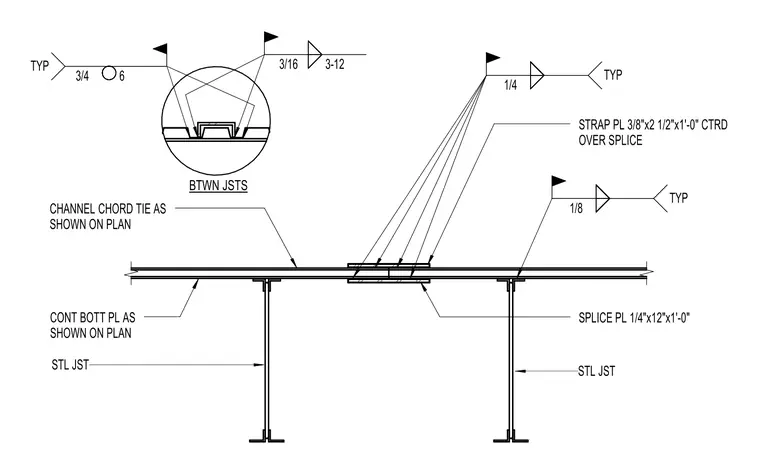

Two steel joists are connected at a splice point located between the joists, tied together using a continuous bottom plate and a channel chord tie sized as shown on plan. A splice plate measuring one-quarter inch by twelve inches by one foot zero inches is positioned beneath the joists. A strap plate measuring three-eighths inch by two and one-half inches by one foot zero inches is centered over the splice. Field welds are specified with typical sizing including one-eighth inch, three-sixteenths inch, and one-quarter inch fillets.
CONT BOTT PL AS SHOWN ON PLAN CHANNEL CHORD TIE AS SHOWN ON PLAN SPLICE PL 1/4"x12"x1'-0" STRAP PL 3/8"x2 1/2"x1'-0" CTRD OVER SPLICE BTWN JSTS STL JST STL JST 1/4 TYP 1/8 TYP 3/16 3-12 3/4 6 TYP
