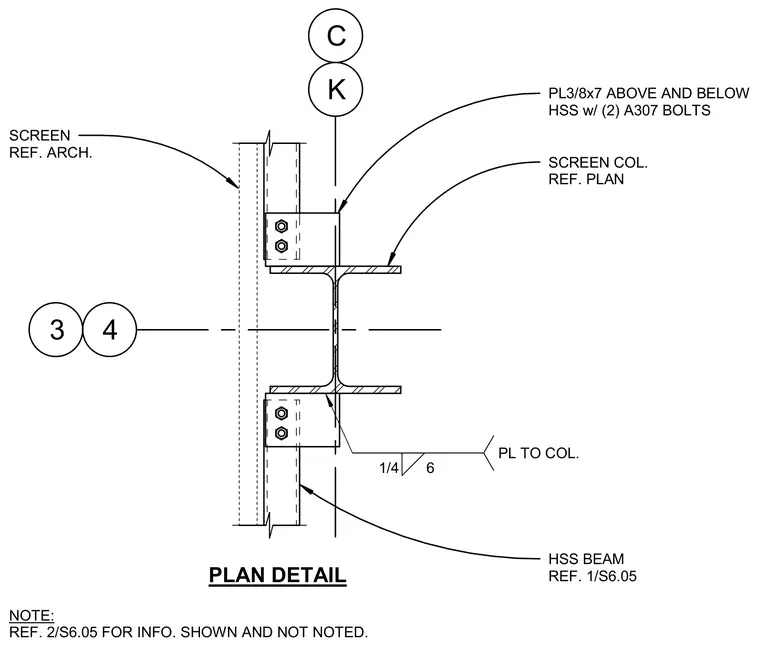

An architectural screen column connects to a wide flange beam using 3/8-inch by 7-inch plates located above and below the hollow structural section, secured with two A307 bolts. The connection plates are welded to the wide flange column with a quarter-inch fillet weld six inches long. The hollow structural section beam references sheet S6.05 for further alignment.
4 3 K C PL3/8x7 ABOVE AND BELOW HSS w/ (2) A307 BOLTS SCREEN COL. REF. PLAN HSS BEAM REF. 1/S6.05 SCREEN REF. ARCH. 1/4 6 PL TO COL. PLAN DETAIL NOTE: REF. 2/S6.05 FOR INFO. SHOWN AND NOT NOTED.
