Structural · S-AJEGP

Composite Metal Deck Stud Spacing and Puddle Weld Detail

Materials

Steel Timber / Wood

Elements

Columns Beams Decks

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

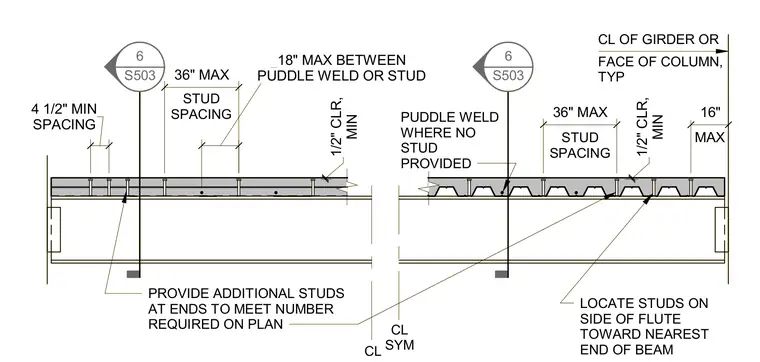

Spacing and placement requirements for shear studs and puddle welds on a composite metal deck running perpendicular to a steel beam or girder. Shear studs are located on the side of the flute toward the nearest end of the beam, maintaining a minimum half-inch clearance and a four-and-a-half-inch minimum spacing. Puddle welds are provided where no stud is present, with an eighteen-inch maximum spacing between studs and puddle welds. Additional studs must be added at ends to meet the number required on plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
