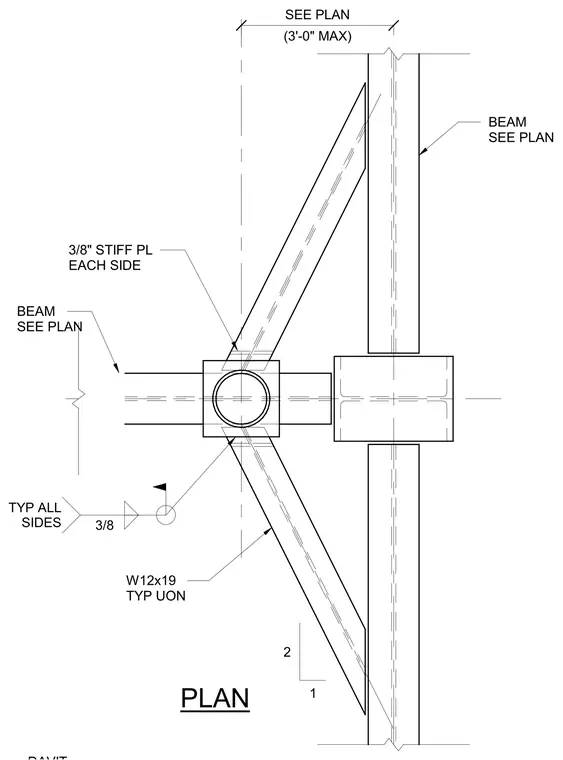

Three-eighths-inch thick stiffener plates are welded on each side of the beam assembly with three-eighths-inch typical fillet welds on all sides. Framing members consist of W12x19 structural steel beams sized per plan.
PLAN W12x19 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE 2 1 BEAM SEE PLAN (3'-0" MAX) SEE PLAN 3/8 TYP ALL SIDES
