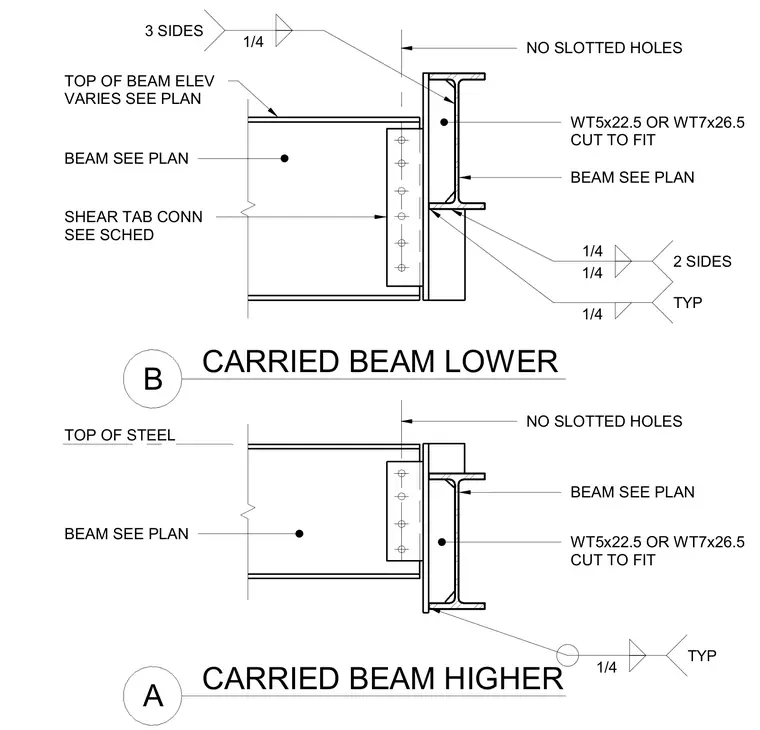

An offset steel beam connection uses a WT5x22.5 or WT7x26.5 structural tee cut to fit between members with no slotted holes. A shear tab connection specified per schedule joins the carried beam web to the supporting tee. Fillet welds of one-quarter inch size are applied on two or three sides as indicated. The top of steel elevation varies per plan for each carried beam condition.
TOP OF BEAM ELEV VARIES SEE PLAN NO SLOTTED HOLES SHEAR TAB CONN SEE SCHED TOP OF STEEL WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN WT5x22.5 OR WT7x26.5 CUT TO FIT BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 1/4 3 SIDES 1/4 TYP 1/4 1/4 2 SIDES 1/4 TYP CARRIED BEAM HIGHER A CARRIED BEAM LOWER B NO SLOTTED HOLES
