Structural · S-AHY6G

Steel Column Base Plate at Concrete Pile Cap

Materials

Concrete

Elements

Columns Floors / Slabs Foundations / Footings Expansion / Control Joints Reinforcing

Connections

Rebar Splice / Development

About this detail

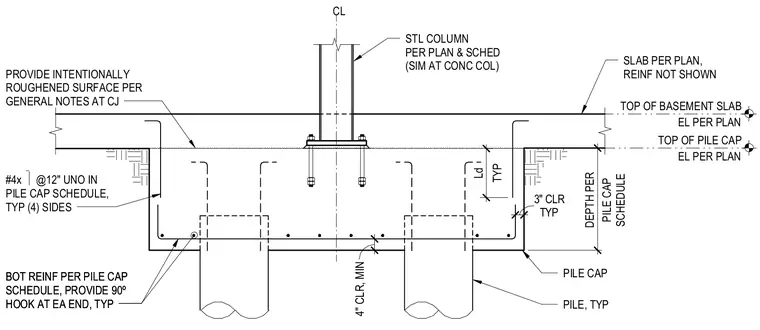

A steel column connects to a reinforced concrete pile cap via a base plate and anchor bolts, positioned below the basement slab. The pile cap is supported by multiple piles and features bottom reinforcing with ninety-degree hooks at each end, alongside vertical reinforcement on four sides. The concrete surface at the construction joint is intentionally roughened per general notes, with standard clearances maintained for all reinforcing steel and pile embedment depth.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
