A continuous wide-flange beam frames over a vertical column, supported by a three-quarter-inch plate sized as required or equal to the beam flange width. Four three-quarter-inch diameter A325N bolts secure the assembly with standard edge distances and typical usual gage. One-half-inch stiffener plates weld to each side of the beam web using three-sixteenth-inch fillet welds on three sides. Minimum welds per American Institute of Steel Construction specifications join the web and flanges to the supports at both wide-flange and hollow structural section column configurations.

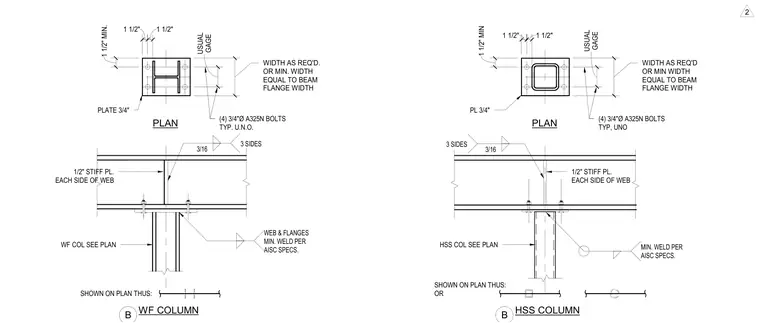

1/2" STIFF PL. EACH SIDE OF WEB WF COL SEE PLAN PLAN PLATE 3/4" (4) 3/4"Ø A325N BOLTS TYP. U.N.O. WIDTH AS REQ'D. OR MIN. WIDTH EQUAL TO BEAM FLANGE WIDTH 3/16 3 SIDES WEB & FLANGES MIN. WELD PER AISC SPECS. GAGE USUAL . 1 1/2" MIN. 1 1/2" 1 1/2" SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL. EACH SIDE OF WEB 3/16 3 SIDES MIN. WELD PER AISC SPECS. HSS COLUMN WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" B 2
