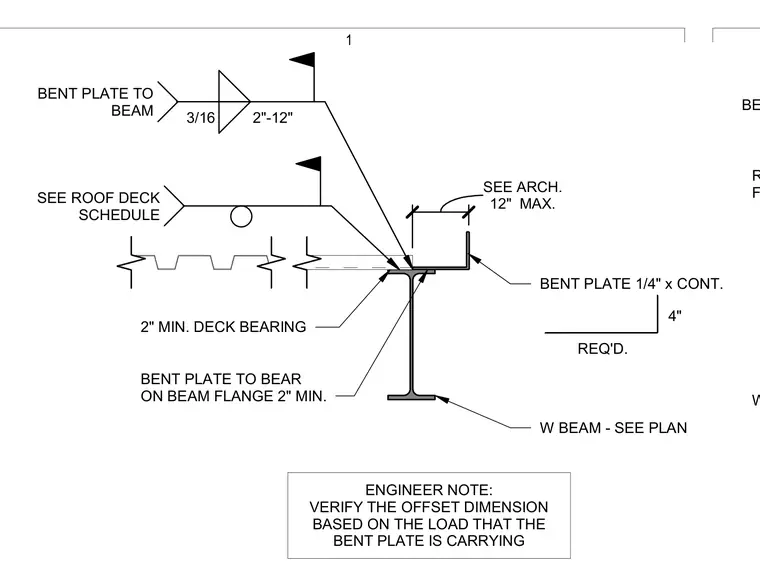

A roof deck bears on the top flange of a wide flange steel beam requiring a minimum two-inch bearing width. A continuous one-quarter-inch thick bent plate attaches to the beam flange with a three-sixteenths-inch fillet weld at two inches to twelve inches spacing. The offset dimension for the bent plate requires verification based on the carried load. Architectural coordination is required for the twelve-inch maximum dimension.
12" MAX. SEE ARCH. 2" MIN. DECK BEARING BENT PLATE TO BEAR ON BEAM FLANGE 2" MIN. BENT PLATE 1/4" x CONT. W BEAM - SEE PLAN REQ'D. 4" ENGINEER NOTE: VERIFY THE OFFSET DIMENSION BASED ON THE LOAD THAT THE BENT PLATE IS CARRYING W BEAM - SEE PLAN ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT SEE ROOF DECK SCHEDULE 3/16 2"-12" BENT PLATE TO BEAM BENT PLATE TO 1
