Beam web stiffener plates and column continuity plates are provided for a steel wide-flange connection. The beam web receives three-eighth-inch stiffener plates on each side of the web unless noted otherwise, welded with a quarter-inch fillet weld held back one-quarter inch from the coped edge. The wide-flange column features continuity plates matching the thickness of the connecting beam flange, welded with five-sixteenth-inch fillets at the web and complete joint penetration welds elsewhere. Continuity plates include a one-half-inch radius and may extend beyond the column flange up to three-quarters of an inch at the contractor's option.

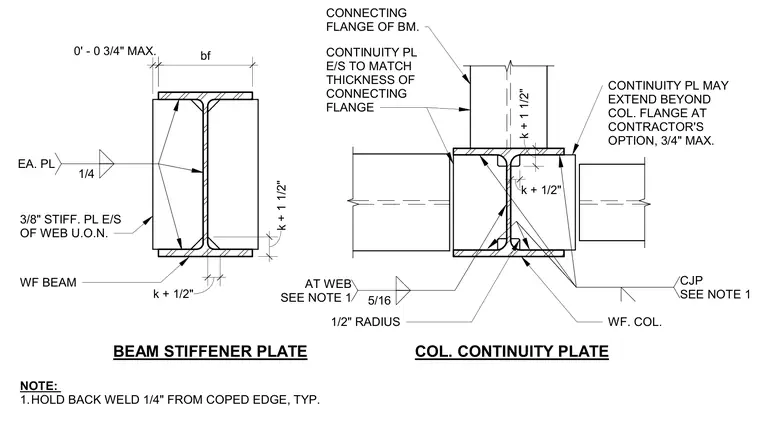

BEAM STIFFENER PLATE COL. CONTINUITY PLATE WF BEAM 3/8" STIFF. PL E/S OF WEB U.O.N. CONNECTING FLANGE OF BM. CONTINUITY PL E/S TO MATCH THICKNESS OF CONNECTING FLANGE 1/2" RADIUS CONTINUITY PL MAY EXTEND BEYOND COL. FLANGE AT CONTRACTOR'S OPTION, 3/4" MAX. k + 1/2" k + 1 1/2" EA. PL 1/4 AT WEB SEE NOTE 1 5/16 CJP SEE NOTE 1 WF. COL. k + 1/2" 0' - 0 3/4" MAX. bf k + 1 1/2" NOTE: 1.HOLD BACK WELD 1/4" FROM COPED EDGE, TYP.
